尼龍不銹鋼嵌片扎帶

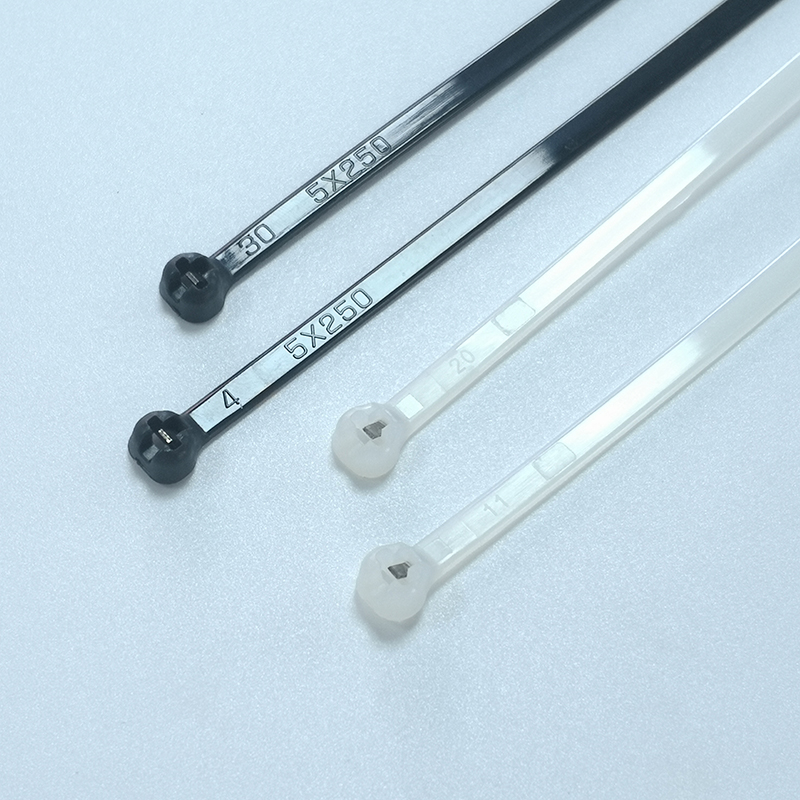

尼龍不銹鋼嵌片扎帶 NZ-1
Nylon cable tie - stainless steel plate lock
產品特點 Product Features
材質：采用UL認可之尼龍66為原料，防火等級94V-2，耐酸、不易老化，承受力強。
顏色：標準顏色為白色和黑色（防紫外線）
溫度：-40℃+85℃。
使用：室內外均可用，自鎖式，安裝快捷方便。
Material:Nylon 66,94V-2 certificated by UL.Heat-resisting
Working temperature:-40℃+85℃
Color:Natural(white),UV black and other colors are available as requested
常用規格參數如下：
|
型號 Type |
規格 Specification |
寬度 Width |
長度 Length |
捆扎直徑 Max bundle dia |
拉力(KGS) Min loop tensile strength |
| NZ-1 | 3X100 | 3 | 100 | 22 | 8 |
|
NZ-1 |
4X150 | 4 | 150 | 35 | 16 |
|
NZ-1 |
4X200 | 4 | 200 | 53 | 16 |
|
NZ-1 |
4.8X186 | 4.8 | 186 | 45 | 22 |
|
NZ-1 |
5X250 | 5 | 250 | 65 | 22 |
|
NZ-1 |
5X300 | 5 | 300 | 76 | 22 |
|
NZ-1 |
6X200 | 6 | 200 | 53 | 22 |
|
NZ-1 |
7X300 | 7 | 300 | 76 | 50 |
|
NZ-1 |
7X370 | 7 | 370 | 102 | 50 |
|
NZ-1 |
8X200 | 8 | 200 | 53 | 50 |
|
NZ-1 |
8X240 | 8 | 240 | 62 | 50 |
|
NZ-1 |
8X300 | 8 | 300 | 76 | 50 |
|
NZ-1 |
8X350 | 8 | 350 | 92 | 50 |
|
NZ-1 |
8X400 | 8 | 400 | 109 | 50 |
|
NZ-1 |
10X300 | 10 | 300 | 76 | 55 |
|
NZ-1 |
10X350 | 10 | 350 | 92 | 55 |
|
NZ-1 |
10X400 | 10 | 400 | 109 | 55 |
|
NZ-1 |
10X450 | 10 | 450 | 120 | 55 |
|
NZ-1 |
4.8X370 | 4.8 | 370 | 102 | 22 |
